BYD Atto
2-3 hrs*
40kW DC
Fast Charger
Rapid Energy. Minimal Design. Maximum Impact.
Key Highlights
Fast charging. Smart control.
Effortless every day.
Smart power. Compact build. Always ready to charge.
Award Winning Design
Charging Capacity Up to 40kW
Made to Withstand Harsh Weather
Reliable
in every charge
Engineered for consistency and durability, ensuring
smooth performance day after day.
Bold on the
power
Mercedes EQS
2-3 hrs*
BMW i7
6-7 hrs*
95％ Charge in (40kW)

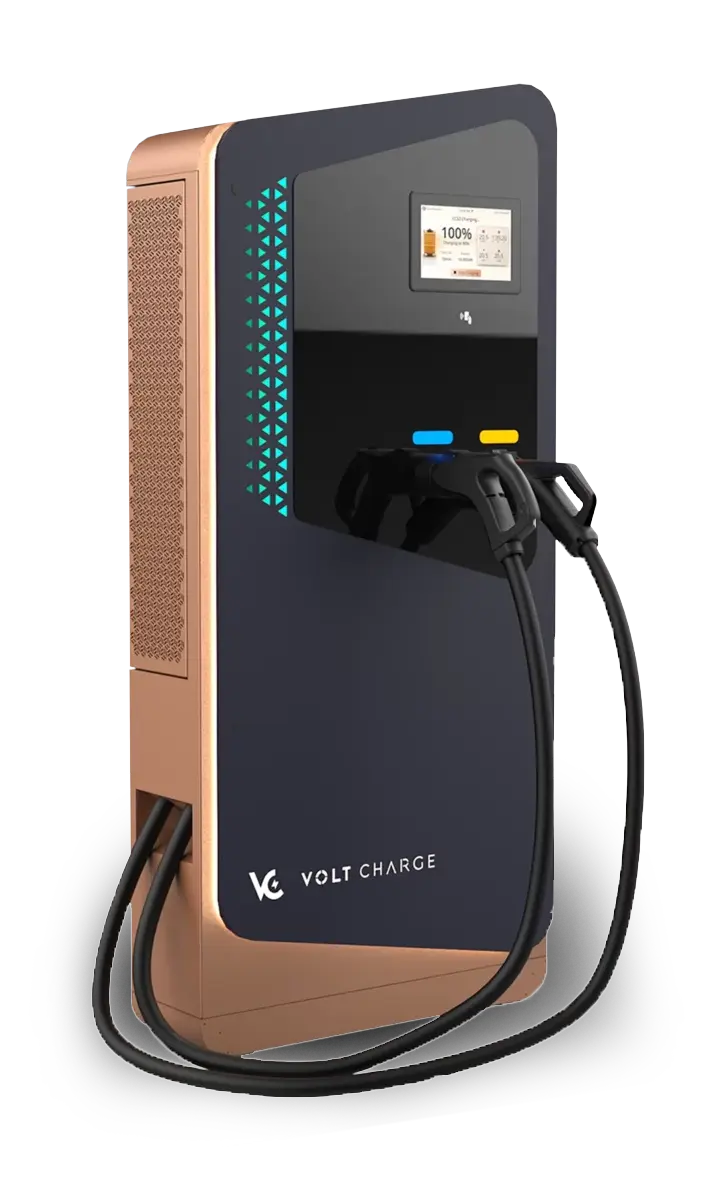

ABOUT THE CHARGER
Built for
Performance.
Designed for Everyday.
40kW DC Fast Charging Capacity
Input Connection 3L+N+PE
Award Winning Elegant and Sleek Design
4G, WIFI, Bluetooth, Mobile App Connected
Operating Temperature: –30°C to +60°C
IP54 Rated Environment Protection
Your Charger, Your Style
GET STARTED
Power Your Drive with
Smarter, Sleeker, Powerful
Charger Today
Reliable charging made for everyday life.
Contact UsProduct Specifications
Technical Specifications That
Power Performance
Charging Power40kW Max.
Input Connection3L+N+PE
Input Voltage400 V ±10% (P-P)
Input Frequency45-65 Hz
Input Current/Power60 A 84 kVA
Power Factor≥ 0.96
Total Harmonic Distortion≤ 5%
Output VoltageCCS2: 150 - 1000 Vdc, CHAdeMO: 150V - 500V
Output CurrentCCS2: 0 - 200 Adc CHAdeMO: 0 – 125 Adc
Efficiency≥95%
Charging ProtocolsIEC61851 / DIN70121 / ISO15118 /CHAdeMO 1.0.1
Smart AuthenticationISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, App
Network ConnectionWIFI
Communication Method OCPP 1.6 / 2.0.1
User interface10.1" High brightness color touch display
Cooling systemAir cooling
Operating Temperature-30°C to +60°C (Derating may apply)
Storage Temperature-35°C to +70°C
Environment ProtectionIP54
Cable length5 m
Dimensions (H x W x D)1800(H) x 810(W) x 280(D) mm
Weight140 kg
Warranty1 Year
OUR CHARGER RANGE
Charging Solutions for Every Need
and Environment
7kW L2 Charger
11kW L2 Charger
22kW L2 Charger
